Noritz 120K BTU 6.6 gpm 0.87 UEF Tankless Water Heater Bundle | EZTR40-NG
IMPORTANT: This product is only available to pre-authorized wholesale customers. Please request a price quote from your sales representitive prior to ordering. If you are not an existing customer, or do not have an assigned sales representative, use the Contact Us page under the Support Link above.
_________
SKU Ordering #: Z-EZTR40-NG
Manufacturer Model #: EZTR40-NG
Minimum Order: 1
Details

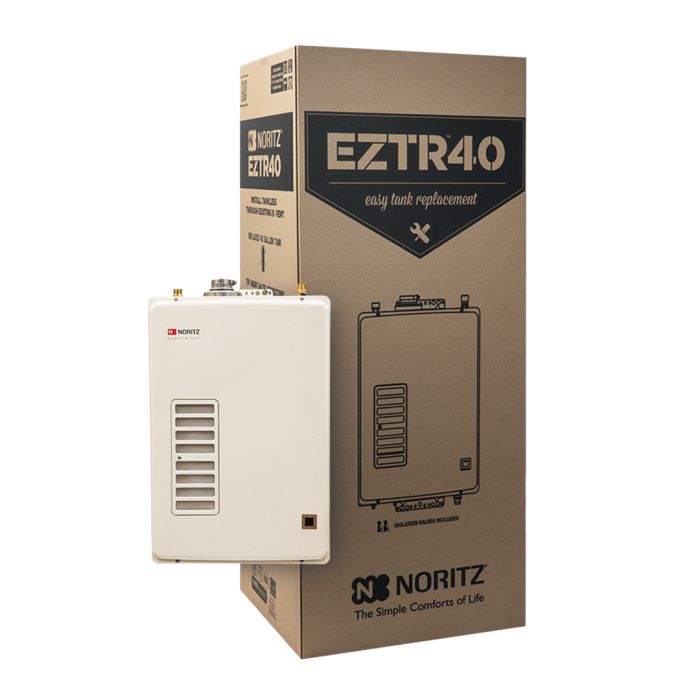

The EZTR40 is designed to replace a conventional 40-gallon tank-type water heater for two-bath residences in warm-weather climates. The hot- and cold- water connections are located on top of the unit, not on the bottom, like most tankless heaters. This positioning allows the flexible water lines used by the previous storage tank heater to be quickly and easily reconnected to the new unit. This bundle incldes Noritz NRC663-FSV tankless water heater, venting, and isolation valves.
Features
- Standard Input: Gas consumption ranges from 15,000 BTUh to 120,000 BTUh
- Capacity Range: Flow rates from 0.5 GPM up to 6.6 GPM
- Durable Steel Casing with Polyester Coating
- Venting Options - Indoor venting only. N-Flex Kit (included) is designed for the installation inside of B-Vent as a sleeve.
- Direct Electronic Ignition
- Temperature Controls: Includes built in display that can preset the output temperature to either 120°F, 135°F, or 140°F
- Power Cord Installation Kit: 6’ power cord is included and attached
- Safety Devices: Flame Sensor, Overheat Prevention Device, Lighting Protection Device, Freeze Protection, Condensate Overfill, Fan Rotation Detector
- Additional Features - Temperature Lockout, High Elevation Adjustment
- Gas Line- Use new or existing 1/2” gas line. For supply gas pressure <8” W.C. use gas line up to 10’, for supply pressure >= 8” W.C. use gas line up to 100’.
- Approvals- CSA, UPC**, NSF, Low NOx Approved by SCAQMD [<14 ng/J or 20ppm]
Technical
- BTUs
- 120 BTU/hr
- Flow Rates
- Maximum: 6.6 gpm
- 50 deg. Temp Rise, 4.4 gpm
- 80 deg. Temp Rise, 2.8 gpm
- Power Supply
- 120 VAC 60 Hz
- Installation Locations
- Indooor
- Dimensions
- 18.3" W x 27.2" H x 9.4" D
- Weight
- 50 pounds
- Warranty
- Heat Exchanger w/o Recurculation: 12 years
- Heat Exchanger w/ Recirculation: 3 years w/ Aquastat
- Parts: 5 years
- Note: This unit can only be vented vertically, it cannot be vented horizontally
| Manufacturer | Noritz |
|---|---|
| Manufacturer Model | EZTR40-NG |
| BTU Rating | 120,000 |
| Gallons per Minute | 6.6 |
| Uniform Energy Factor | 0.87 |
| Therms/Year | 127 |
| ENERGY STAR® Certified | Yes |
| AHRI Certified | Yes |
| UPC | 817000013097 |
| Manufacturer Warranty (Years) | 5 |
| Country of Origin | Japan |
