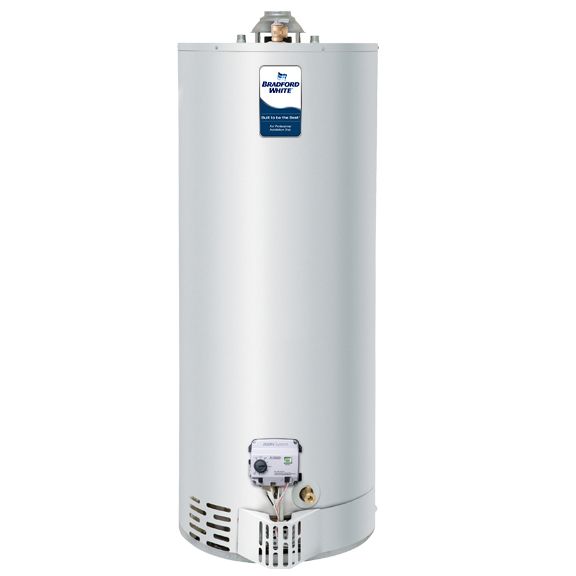

Bradford White 40 gal. 34K BTU 0.59 UEF Natural Gas Water Heater | URG140T6N
IMPORTANT: This product is only available to pre-authorized wholesale customers. Please request a price quote from your sales representitive prior to ordering. If you are not an existing customer, or do not have an assigned sales representative, use the Contact Us page under the Support Link above.
_________
SKU Ordering #: Z-URG140T6N-394
Manufacturer Model #: URG140T6N
Minimum Order: 1
Details
Bradford White's Ultra Low NOx Atmospheric Vent Gas Water Heater has Bradford White's Eco-Defender Safety System®, designed to be the safest & most reliable flammable vapor ignition resistant system in the industry. Featuring an advanced ScreenLok® technology flame arrestor design, primary and secondary air distribution that reduces NOx generated by combustion, resettable thermal switch, sight window, and designed to be maintenance-free.
Features
- Bradford White ICON System®—Intelligent gas control with no need for external electricity. Proprietary algorithms provide tighter temperature differential and consistent water temperature levels up to 160°F (70°C). LED light indicates operation status/service requIred.
- Vitraglas® Lining with Microban®—An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water; and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining.
- Hydrojet® Total Performance System: Sediment reducing device that also increases first hour rating of hot water while minimizing temperature build-up in tank.
- Insulation System: Non-CFC foam covers the tank, reducing heat loss, energy consumption, and improves efficiency and jacket rigidity.
- Water Connections: NPT factory-installed dielectric waterway with heat traps.
- Pedestal Base: Rugged and durable base allows easy transport and positioning and corrosion resistant contact with floor.
- Factory-Installed Heat Traps: Incorporates a flexible disk that reduces heat loss in piping and prevents noise.
- Protective Anode Rod: Provides added protection against corrosion for long-term, trouble-free service.
- 3x4 “Snap Lock” Draft Diverter: Allows 3" (76mm) or 4" (102mm) vent connections with inputs of 40,000 BTU/Hr. or less.
- T&P Relief Valve: Installed.
- Low Restrictive Brass Drain Valve: Durable tamper proof design.
- Design Certified by CSA International.
- Complies with the latest Ultra Low NOx requirement (10 ng/J NOx limit
Technical
- Nominal Gallon Capacity: 40 Gallons
- Rated Storage Volume: 38 Gallons
- UEF: 0.59
- Maximum BTUs: 40,000
- Power Source: Natural Gas
- Limited Tank Warranty: 6 Years
- Limited Parts Warranty: 6 Years
- Water Connection Size: 0.75"
- Emissions: Ultra-Low NOx
- First Hour Rating: 64 Gallons
- Flue Diameter: 3" or 4"
- Height: 57.94"
- Diameter: 22.19"
- Shipping Weight: 130 lbs
- Vent Type: Atmospheric Vent
- Height to Gas Valve: 11.44"
| Manufacturer | Bradford White |
|---|---|
| Manufacturer Model | URG140T6N |
| BTU Rating | 34000 |
| Uniform Energy Factor | 0.59 |
| AHRI Certified | Yes |
| UPC | 671632819027 |
| Manufacturer Warranty (Years) | 6 |
| Country of Origin | United States |
